AHDM04-24-16SN

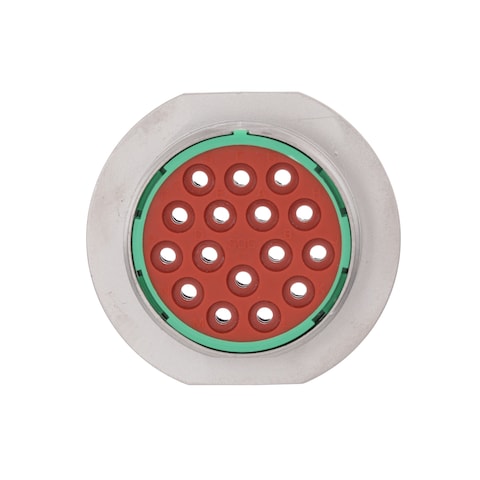

Name: Amphenol AHDM04-24-16SN
Brand: Amphenol SINE Systems
SKU: 654-AHDM042416SN
Price: 13.11 USD
Availability: InStock

Images are for reference only
See Product Specifications

Mouser No:

654-AHDM042416SN

Mfr. No:

AHDM04-24-16SN

Mfr.:

Amphenol SINE Systems

Description:

Standard Circular Connector DURAMATE METAL, AHDM

Datasheet:

AHDM04-24-16SN Datasheet (PDF)

ECAD Model:

Download the free Library Loader to convert this file for your ECAD Tool. Learn more about the ECAD Model.

More Information

Learn more about Amphenol SINE Systems AHDM04-24-16SN

In Stock: 9

Stock:: 9 Can Dispatch Immediately

An unexpected error occurred. Please try again later.
Factory Lead Time:: 16 Weeks Estimated factory production time for quantities greater than shown.

Enter Quantity:

Minimum: 1 Multiples: 1

Unit Price:

$-.--

Ext. Price:

$-.--

Est. Tariff:

Pricing (USD)

Qty.	Unit Price	Ext. Price
	$13.11	$13.11
	$11.78	$117.80
	$11.18	$279.50
	$10.97	$548.50
	$9.98	$4,990.00

.hidden-for-nojs { display: none; } .pull-right-nojs { justify-content: flex-end; }

Product Attribute	Attribute Value	Select Attribute
Manufacturer:	Amphenol
Product Category:	Standard Circular Connector
RoHS:
Product:	Connectors
Number of Positions:	16 Position
Contact Gender:	Socket (Female)
Shell Size:	24
Mounting Style:	Cable
Termination Style:	Crimp
Shell Material:	Zinc Alloy
IP Rating:	IP67, IP69K
Series:	AHDM
Packaging:	Bulk
Brand:	Amphenol SINE Systems
Current Rating:	25 A
Housing Gender:	Female
Housing Material:	Zinc
Mating Cycles:	100 Cycle
Mating Style:	Bayonet
Mounting Angle:	Straight
Product Type:	Standard Circular Connector
Shell Plating:	Nickel
Shell Style:	Receptacle
Factory Pack Quantity:	50
Subcategory:	Circular Connectors
Tradename:	DuraMate
Wire Gauge:	14 AWG to 10 AWG

Products found:

To show similar products, select at least one checkbox

Select at least one checkbox above to show similar products in this category.

Attributes selected: 0

Filter Document:

This functionality requires JavaScript to be enabled.

CAHTS:: 8536690030
USHTS:: 8536694020
JPHTS:: 853669000
KRHTS:: 8536699000
TARIC:: 8536699099
BRHTS:: 85366990
ECCN:: EAR99

DuraMate™ AHDM Circular Metal Connectors

Amphenol Sine Systems DuraMate™ AHDM Circular Metal Connectors are IP68 / 69K (mated), environmentally sealed, multi-pin, heavy-duty, metal (AHDM), circular connectors. These connectors can withstand the challenges and complexities of harsh environmental off-road applications. The AHDM connectors are designed with a three key-way quick-connect bayonet locking system to ensure proper mating of the connectors. The series is available in size 24 with 13 insert arrangements and in size 18 with 6 insert arrangements. These Connectors feature high-current configurations incorporating RADSOK^® contacts, high-density signal, and mixed power insert configurations. The vibration-resistant connectors operate from -55°C to 125°C temperature range.
