15549848

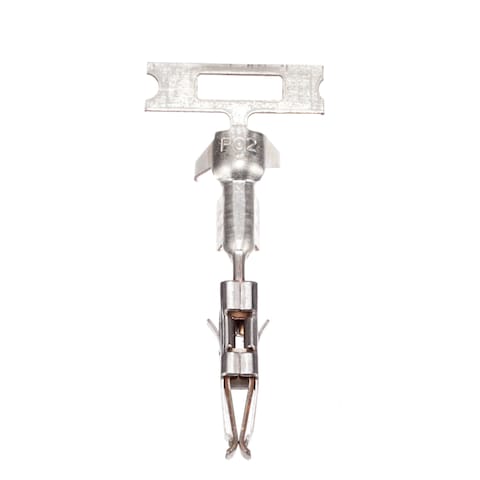

Name: Aptiv 15549848
Brand: Aptiv (formerly Delphi)
SKU: 829-15549848
Price: 0.49 USD
Availability: InStock

Images are for reference only
See Product Specifications

Mouser No:

829-15549848

Mfr. No:

15549848

Mfr.:

Aptiv (formerly Delphi)

Description:

Automotive Connectors DSQ 1.5 Female Locking Lance AG Sealed Terminal

Datasheet:

15549848 Datasheet (PDF)

ECAD Model:

Download the free Library Loader to convert this file for your ECAD Tool. Learn more about the ECAD Model.

More Information

Learn more about Aptiv (formerly Delphi) 15549848

In Stock: 4,891

Stock:: 4,891 Can Dispatch Immediately

An unexpected error occurred. Please try again later.
Factory Lead Time:: 36 Weeks Estimated factory production time for quantities greater than shown.

Enter Quantity:

Minimum: 1 Multiples: 1

Unit Price:

$-.--

Ext. Price:

$-.--

Est. Tariff:

Pricing (USD)

Qty.	Unit Price	Ext. Price
	$0.49	$0.49
	$0.29	$7.25
	$0.278	$13.90
	$0.267	$26.70
	$0.24	$120.00
	$0.233	$233.00
	$0.208	$520.00
	$0.177	$885.00
Full Reel (Order in multiples of 25000)
	$0.177	$4,425.00

.hidden-for-nojs { display: none; } .pull-right-nojs { justify-content: flex-end; }

Product Attribute	Attribute Value	Select Attribute
Manufacturer:	Aptiv
Product Category:	Automotive Connectors
RoHS:
Product:	Terminals
Gender:	Receptacle (Female)
Mounting Style:	Cable Mount / Free Hanging
Termination Style:	Crimp
Contact Plating:	Silver
Wire Gauge Min:	18 AWG
Wire Gauge Max:	17 AWG
Series:	RCS 800
Packaging:	Reel
Packaging:	Cut Tape
Brand:	Aptiv (formerly Delphi)
Product Type:	Automotive Connectors
Factory Pack Quantity:	25000
Subcategory:	Automotive Connectors
Tradename:	RCS
Wire Gauge Range:	17 AWG to 18 AWG

Products found:

To show similar products, select at least one checkbox

Select at least one checkbox above to show similar products in this category.

Attributes selected: 0

Filter Document:

This functionality requires JavaScript to be enabled.

CNHTS:: 8536901100
CAHTS:: 8536900020
USHTS:: 8536904000
JPHTS:: 853690000
TARIC:: 8536901000
MXHTS:: 8536902800
BRHTS:: 85389090
ECCN:: EAR99

HV RCS 890 SW Connectors

Aptiv HV RCS 890 SW Connectors are high-voltage (HV) connectors designed for compact environments. The series features 600V_DC maximum voltage and 210A maximum current. Aptiv HV RCS 890 SW Connectors also provide high water protection from its sealed unmated header. These connectors include a slider feature that offers easy assembly and maximum pressure surface in limited-space conditions.

Electrification Solutions

Aptiv Electrification Solutions offers one of the most comprehensive portfolios of high-power connection systems. Aptiv connection systems provide unique expertise in architecture optimization and systems integration. Aptiv is pushing the innovations required for multi-voltage architectures.

HV RCS 890 Direct Mate 2 Way Connectors

Aptiv HV RCS 890 Direct Mate 2 Way Connectors offer a 200A maximum current, 850V_DC voltage, and IP67 sealing class. These connectors feature an unshielded terminal holder within the device, replacing traditional shielded headers and a sealed header in both mated and unmated positions. Direct Mate 2 Way connectors are finger-safe via plastic tips on male pins, providing cable ranges up to 50 mm2. Aptiv HV RCS 890 Direct Mate 2 Way Connectors are ideal for HV batteries, DC/DC converters, and AC/DC inverters.

HV RCS 800 Electrical Vehicle Connectors

Aptiv HV RCS 800 Electrical Vehicle Connectors come in a compact package with a unique integrated electric interlock. Aptiv HV RCS 800 Electrical Vehicle Connectors feature an integrated ErgoMate™ Axial Mating Assist System on the harness connector, assuring easy assembly. The header is sealed in mated and unmated positions. The series provides a cost-effective design due to the direct connection between the device's female connector and male terminals. The connectors include unique and safe mating screwing with an innovative Screw Position Assurance (SPA) feature.
