P6SMB6-8CA

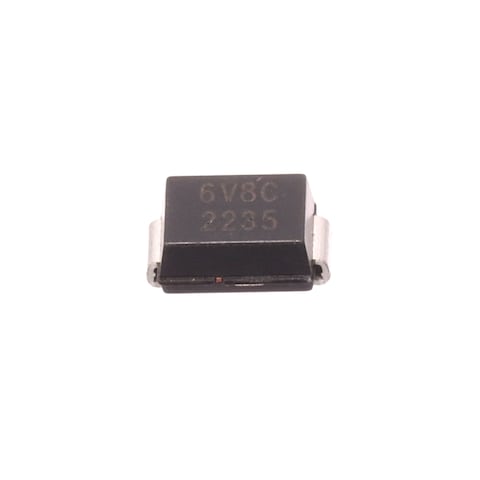

Name: Eaton P6SMB6-8CA
Brand: Eaton Electronics
SKU: 504-P6SMB6X8CA
Price: 0.17 USD
Availability: InStock

Images are for reference only
See Product Specifications

Mouser No:

504-P6SMB6X8CA

Mfr. No:

P6SMB6-8CA

Mfr.:

Eaton Electronics

Description:

ESD Protection Diodes / TVS Diodes P6SMB - CA 5.8V

Datasheet:

P6SMB6-8CA Datasheet (PDF)

ECAD Model:

Download the free Library Loader to convert this file for your ECAD Tool. Learn more about the ECAD Model.

More Information

Learn more about Eaton Electronics P6SMB6-8CA

In Stock: 19,252

Stock:: 19,252 Can Dispatch Immediately

An unexpected error occurred. Please try again later.
Factory Lead Time:: 19 Weeks Estimated factory production time for quantities greater than shown.

Enter Quantity:

Minimum: 1 Multiples: 1

Unit Price:

$-.--

Ext. Price:

$-.--

Est. Tariff:

Packaging:

Full Reel (Order in multiples of 3000)

Cut Tape

MouseReel™ (+$7.00)

Pricing (USD)

Qty.	Unit Price	Ext. Price
Cut Tape / MouseReel™ ^†
	$0.17	$0.17
	$0.15	$1.50
	$0.11	$11.00
	$0.109	$54.50
	$0.098	$98.00
Full Reel (Order in multiples of 3000)
	$0.084	$252.00

† A MouseReel™ fee of $7.00 will be added and calculated in your basket. All MouseReel™ orders are non-cancellable and non-returnable. ↩

.hidden-for-nojs { display: none; } .pull-right-nojs { justify-content: flex-end; }

Product Attribute	Attribute Value	Select Attribute
Manufacturer:	Eaton
Product Category:	ESD Protection Diodes / TVS Diodes
RoHS:
Polarity:	Bidirectional
Number of Channels:	1 Channel
Working Voltage:	5.8 V
Termination Style:	SMD/SMT
Clamping Voltage:	10.5 V
Breakdown Voltage:	6.45 V
Ipp - Peak Pulse Current:	58.1 A
Pppm - Peak Pulse Power Dissipation:	600 W
Minimum Operating Temperature:	- 55 C
Maximum Operating Temperature:	+ 150 C
Packaging:	Reel
Packaging:	Cut Tape
Packaging:	MouseReel
Brand:	Eaton Electronics
Product:	TVS Diodes
Factory Pack Quantity:	3000
Subcategory:	ESD Protection Diodes / TVS Diodes
Unit Weight:	93 mg

Products found:

To show similar products, select at least one checkbox

Select at least one checkbox above to show similar products in this category.

Attributes selected: 0

Filter Document:

Datasheet

P6SMB6-8CA Datasheet (PDF)

This functionality requires JavaScript to be enabled.

CNHTS:: 8536300000
CAHTS:: 8541100090
USHTS:: 8541100080
JPHTS:: 854110090
KRHTS:: 8541109000
TARIC:: 8541100000
MXHTS:: 8541100199
BRHTS:: 85411029
ECCN:: EAR99
