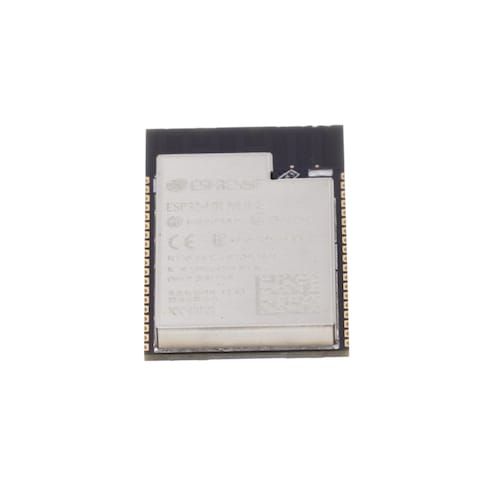

ESP32-WROVER-E-N8R8

Name: Espressif ESP32-WROVER-E-N8R8
Brand: Espressif Systems
SKU: 356-ESP32WRVE26464PC
Price: 5.71 USD
Availability: InStock

Images are for reference only
See Product Specifications

Mouser No:

356-ESP32WRVE26464PC

Mfr. No:

ESP32-WROVER-E-N8R8

Mfr.:

Espressif Systems

Description:

Multiprotocol Modules SMD Module ESP32-WROVER-E, ESP32-D0WD-V3, 3.3V 64Mbit PSRAM, 8 MB SPI flash, PCB Antenna

Datasheet:

ESP32-WROVER-E-N8R8 Datasheet (PDF)

ECAD Model:

Download the free Library Loader to convert this file for your ECAD Tool. Learn more about the ECAD Model.

More Information

Learn more about Espressif Systems ESP32-WROVER-E-N8R8

In Stock: 12,806

Stock:: 12,806 Can Dispatch Immediately

An unexpected error occurred. Please try again later.
Factory Lead Time:: 9 Weeks Estimated factory production time for quantities greater than shown.

Enter Quantity:

Minimum: 1 Multiples: 1

Unit Price:

$-.--

Ext. Price:

$-.--

Est. Tariff:

Packaging:

Full Reel (Order in multiples of 650)

Cut Tape

MouseReel™ (+$7.00)

Pricing (USD)

Qty.	Unit Price	Ext. Price
Cut Tape / MouseReel™ ^†
	$5.71	$5.71
	$4.95	$49.50
	$4.68	$117.00
	$4.31	$431.00
	$4.09	$1,022.50
Full Reel (Order in multiples of 650)
	$3.87	$2,515.50
	$3.73	$4,849.00
	$3.65	$7,117.50
4,550	Quote

† A MouseReel™ fee of $7.00 will be added and calculated in your basket. All MouseReel™ orders are non-cancellable and non-returnable. ↩

.hidden-for-nojs { display: none; } .pull-right-nojs { justify-content: flex-end; }

Product Attribute	Attribute Value	Select Attribute
Manufacturer:	Espressif
Product Category:	Multiprotocol Modules
RoHS:
Series:	ESP32-WROVER
Frequency:	2.4 GHz
Output Power:	20 dBm
Interface Type:	ADC, DAC, GPIO, I2C, I2S, PWM, SD Card, SDIO, SPI, TWAI, UART
Supply Voltage - Min:	3 V
Supply Voltage - Max:	3.6 V
Minimum Operating Temperature:	- 40 C
Maximum Operating Temperature:	+ 85 C
Antenna Connector Type:	PCB
Dimensions:	18 mm x 31.4 mm x 3.3 mm
Protocol - Bluetooth, BLE - 802.15.1:	BLE, Bluetooth 4.2
Protocol - WiFi - 802.11:	802.11 b/g/n
Packaging:	Reel
Packaging:	Cut Tape
Packaging:	MouseReel
Brand:	Espressif Systems
Data Rate:	150 Mb/s
Moisture Sensitive:	Yes
Operating Supply Voltage:	2.3 V to 3.6 V
Product Type:	Multiprotocol Modules
Factory Pack Quantity:	650
Subcategory:	Wireless & RF Modules
Part # Aliases:	ESP32WROVER-E(M213EH6464PH3Q0)

Products found:

To show similar products, select at least one checkbox

Select at least one checkbox above to show similar products in this category.

Attributes selected: 0

Filter Document:

Datasheet

ESP32-WROVER-E-N8R8 Datasheet (PDF)

PCN

EU Declaration of Conformity (PDF)

CNHTS:: 8517629990
USHTS:: 8517620090
JPHTS:: 851762090
TARIC:: 8517620000
ECCN:: 5A992.C

ESP32-WROVER-B Wireless Module

Espressif ESP32-WROVER-B Wireless Module is a powerful, generic WiFi-BT-BLE MCU module that targets various applications. These applications range from low-power sensor networks to the most demanding tasks, such as voice encoding, music streaming, and MP3 decoding. This module is provided in two variations. One module comes with a PCB antenna and the other with an IPEX antenna. ESP32-WROVER-B features a 4MB external SPI flash and an additional 8MB SPI Pseudo static RAM (PSRAM).

ESP32-WROVER MCU Modules

Espressif Systems ESP32-WROVER MCU Modules are powerful and generic Wi-Fi/BT/BLE MCU module that targets a wide variety of applications. These modules target applications ranging from low-power sensor networks to the most demanding tasks, such as voice encoding, music streaming, and MP3 decoding. The ESP32-WROVER module uses a PCB antenna, while ESP32-WROVER-I uses an IPEX antenna. These modules feature 4MB external SPI flash, 4MB external PSRAM, and an additional SPI PSRAM of 32Mbits.
