DF20EF-20DP-1V(52)

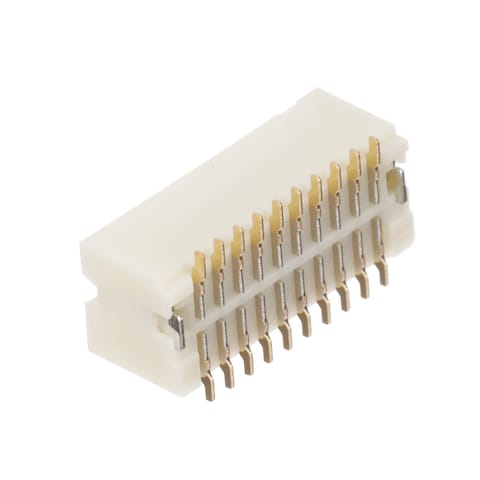

Name: Hirose Electric DF20EF-20DP-1V(52)
Brand: Hirose Connector
SKU: 798-DF20EF-20DP-1V52
Price: 1.62 USD
Availability: InStock

Images are for reference only
See Product Specifications

Mouser No:

798-DF20EF-20DP-1V52

Mfr. No:

DF20EF-20DP-1V(52)

Mfr.:

Hirose Connector

Description:

Headers & Wire Housings

Datasheet:

DF20EF-20DP-1V(52) Datasheet

ECAD Model:

Download the free Library Loader to convert this file for your ECAD Tool. Learn more about the ECAD Model.

More Information

Learn more about Hirose Connector DF20EF-20DP-1V(52)

In Stock: 2,231

Stock:: 2,231 Can Dispatch Immediately

An unexpected error occurred. Please try again later.
Factory Lead Time:: 6 Weeks Estimated factory production time for quantities greater than shown.

Enter Quantity:

Minimum: 1 Multiples: 1

Unit Price:

$-.--

Ext. Price:

$-.--

Est. Tariff:

Pricing (USD)

Qty.	Unit Price	Ext. Price
	$1.62	$1.62
	$1.38	$13.80
	$1.17	$117.00
	$1.10	$550.00
Full Reel (Order in multiples of 1000)
	$1.03	$1,030.00

.hidden-for-nojs { display: none; } .pull-right-nojs { justify-content: flex-end; }

Product Attribute	Attribute Value	Select Attribute
Manufacturer:	Hirose Electric
Product Category:	Headers & Wire Housings
RoHS:
Product:	Headers
Type:	Wire to Board
Number of Positions:	20 Position
Pitch:	1 mm (0.039 in)
Number of Rows:	2 Row
Mounting Style:	SMD/SMT
Termination Style:	Solder
Mounting Angle:	Straight
Contact Gender:	Pin (Male)
Contact Plating:	Gold
Series:	DF20
Wire Gauge:	28 AWG
Minimum Operating Temperature:	- 35 C
Maximum Operating Temperature:	+ 85 C
Packaging:	Reel
Packaging:	Cut Tape
Brand:	Hirose Connector
Contact Material:	Phosphor Bronze
Current Rating:	1 A
Flammability Rating:	UL 94 V-0
Housing Colour:	Beige
Housing Gender:	Male
Housing Material:	Polyamide
Insulation Resistance:	500 MOhms
Product Type:	Headers & Wire Housings
Factory Pack Quantity:	1000
Subcategory:	Headers & Wire Housings
Voltage Rating:	100 V
Part # Aliases:	686-0056-0-52

Products found:

To show similar products, select at least one checkbox

Select at least one checkbox above to show similar products in this category.

Attributes selected: 0

Filter Document:

Datasheet

DF20EF-20DP-1V(52) Datasheet

Models

DF20EF-20DP-1V(52) Symbol & Footprint by SnapMagic

This functionality requires JavaScript to be enabled.

CNHTS:: 8536901100
CAHTS:: 8536690020
USHTS:: 8536694040
JPHTS:: 853669000
KRHTS:: 8536691000
TARIC:: 8536693000
MXHTS:: 8536699999
BRHTS:: 85366990
ECCN:: EAR99

DF20 SignalBee 1.0mm Board-to-Cable Connectors
