H2.4-R-SR2-S

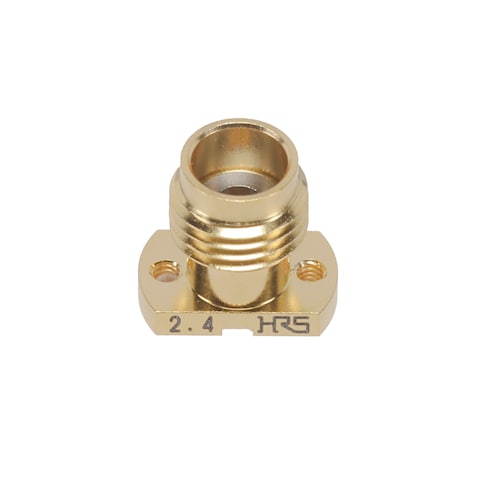

Name: Hirose Electric H2.4-R-SR2-S
Brand: Hirose Connector
SKU: 798-H2.4-R-SR2-S
Price: 39.54 USD
Availability: InStock

Images are for reference only
See Product Specifications

Mouser No:

798-H2.4-R-SR2-S

Mfr. No:

H2.4-R-SR2-S

Mfr.:

Hirose Connector

Description:

RF Connectors / Coaxial Connectors 2.4mm(APC-2.4,OS-50) Conn Recpt Fem Sock

Datasheet:

H2.4-R-SR2-S Datasheet (PDF)

ECAD Model:

Download the free Library Loader to convert this file for your ECAD Tool. Learn more about the ECAD Model.

More Information

Learn more about Hirose Connector H2.4-R-SR2-S

In Stock: 14

Stock:: 14 Can Dispatch Immediately

An unexpected error occurred. Please try again later.
Factory Lead Time:: 3 Weeks Estimated factory production time for quantities greater than shown.

Enter Quantity:

Minimum: 1 Multiples: 1

Unit Price:

$-.--

Ext. Price:

$-.--

Est. Tariff:

Pricing (USD)

Qty.	Unit Price	Ext. Price
	$39.54	$39.54
	$32.01	$320.10
	$30.47	$609.40
	$29.61	$1,776.60
	$28.56	$2,856.00
	$27.45	$7,137.00

.hidden-for-nojs { display: none; } .pull-right-nojs { justify-content: flex-end; }

Product Attribute	Attribute Value	Select Attribute
Manufacturer:	Hirose Electric
Product Category:	RF Connectors / Coaxial Connectors
RoHS:
Product:	Connectors
RF Series:	2.4 mm
Gender:	Jack (Socket)
Impedance:	50 Ohms
Maximum Frequency:	50 GHz
Termination Style:	Compression
Orientation:	Straight
Polarity:	Standard
Mounting Style:	Flange Mount
Packaging:	Bulk
Brand:	Hirose Connector
Product Type:	RF Connectors / Coaxial Connectors
Factory Pack Quantity:	20
Subcategory:	RF Interconnects
Part # Aliases:	338-0605-0-00

Products found:

To show similar products, select at least one checkbox

Select at least one checkbox above to show similar products in this category.

Attributes selected: 0

Filter Document:

Datasheet

H2.4-R-SR2-S Datasheet (PDF)

CAHTS:: 8536690010
USHTS:: 8536694010
JPHTS:: 853669000
KRHTS:: 8536691000
TARIC:: 8536691000
MXHTS:: 8536699999
BRHTS:: 85366990
ECCN:: EAR99

HK & H2.4 Coaxial Connectors

Hirose Electric HK and H2.4 Series Coaxial Connectors support frequencies of 40GHz and 50GHz, respectively. The HK series features 2.92mm connectors, while the H2.4 series is slightly smaller at 2.4mm. Both types conform to the MIL-STD-348B standard. Hirose Electric HK and H2.4 Coaxial Connectors use screw mounting to provide excellent high-frequency performance and consistent assembly quality. The connectors also accommodate flexible PCBs with varying thicknesses and provide stable grounding through a gold-plated ground surface.
