PPB1632100KES

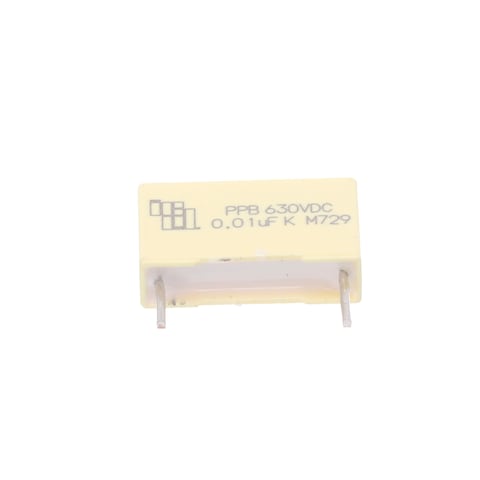

Name: Nichicon PPB1632100KES
Brand: Nichicon
SKU: 647-PPB1632100KES
Price: 1.36 USD
Availability: InStock

Images are for reference only
See Product Specifications

Mouser No:

647-PPB1632100KES

Mfr. No:

PPB1632100KES

Mfr.:

Nichicon

Description:

Film Capacitors .01UF 630V 10%

Datasheet:

PPB1632100KES Datasheet (PDF)

ECAD Model:

Download the free Library Loader to convert this file for your ECAD Tool. Learn more about the ECAD Model.

More Information

Learn more about Nichicon PPB1632100KES

In Stock: 704

Stock:: 704 Can Dispatch Immediately

An unexpected error occurred. Please try again later.
Factory Lead Time:: 25 Weeks Estimated factory production time for quantities greater than shown.

Enter Quantity:

Minimum: 1 Multiples: 1

Unit Price:

$-.--

Ext. Price:

$-.--

Est. Tariff:

Pricing (USD)

Qty.	Unit Price	Ext. Price
	$1.36	$1.36
	$0.584	$5.84
	$0.55	$55.00
	$0.466	$466.00
	$0.402	$10,050.00

.hidden-for-nojs { display: none; } .pull-right-nojs { justify-content: flex-end; }

Product Attribute	Attribute Value	Select Attribute
Manufacturer:	Nichicon
Product Category:	Film Capacitors
RoHS:
Capacitance:	0.01 uF
Voltage Rating DC:	630 VDC
Termination Style:	Radial
Dielectric:	Polypropylene (PP)
Lead Spacing:	15 mm (0.591 in)
Length:	18 mm (0.709 in)
Width:	5 mm (0.197 in)
Product:	Snubber Film Capacitors
Voltage Rating AC:	400 VAC
Tolerance:	10 %
Number of Pins:	2 Pin
Height:	11 mm (0.433 in)
Lead Style:	Straight
Minimum Operating Temperature:	- 55 C
Maximum Operating Temperature:	+ 105 C
Series:	PPB
Packaging:	Bulk
Brand:	Nichicon
Product Type:	Film Capacitors
Factory Pack Quantity:	1000
Subcategory:	Capacitors

Products found:

To show similar products, select at least one checkbox

Select at least one checkbox above to show similar products in this category.

Attributes selected: 0

Filter Document:

Datasheet

PPB1632100KES Datasheet (PDF)

Other

Partnership Announcement (PDF)

RoHS Certificate (PDF)

CAHTS:: 8532250000
USHTS:: 8532250070
JPHTS:: 853225000
KRHTS:: 8532250000
TARIC:: 8532250000
MXHTS:: 8532259999
BRHTS:: 85322590
ECCN:: EAR99

PPB Radial-Terminal Snubber Capacitors

Nichicon PPB Snubber Capacitors are high-current, high-frequency capacitors in a box-type case with radial terminals. Nichicon PPB Capacitors feature a 160V_AC to 700V_AC and 250V_DC to 2kV_DC voltage rating and a 1000pF to 15µF capacitance range. The PPB series operates over a -55°C to +105°C operating temperature range and is ideal for various uses, including energy conversion and control, power semiconductor circuits, protection circuits in switch-mode power supplies (SMPS), and more.
