STGWA15H120DF2

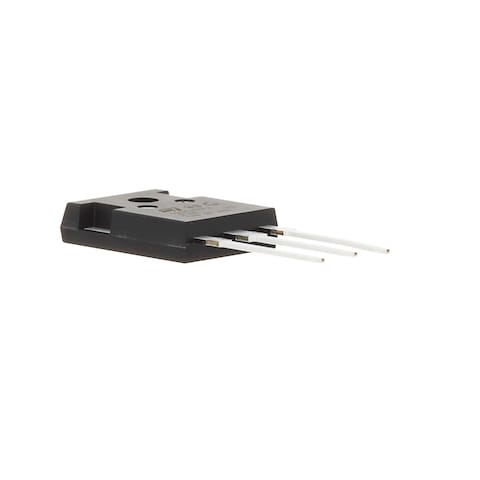

Name: STMicroelectronics STGWA15H120DF2
Brand: STMicroelectronics
SKU: 511-STGWA15H120DF2
Price: 4.61 USD
Availability: InStock

Images are for reference only
See Product Specifications

Mouser No:

511-STGWA15H120DF2

Mfr. No:

STGWA15H120DF2

Mfr.:

STMicroelectronics

Description:

IGBTs Trench gate field-stop IGBT, H series 1200 V, 15 A high speed

Complete Your Design

Datasheet:

STGWA15H120DF2 Datasheet (PDF)

ECAD Model:

Download the free Library Loader to convert this file for your ECAD Tool. Learn more about the ECAD Model.

More Information

Learn more about STMicroelectronics STGWA15H120DF2

In Stock: 511

Stock:: 511 Can Dispatch Immediately

An unexpected error occurred. Please try again later.
Factory Lead Time:: 14 Weeks Estimated factory production time for quantities greater than shown.

Enter Quantity:

Minimum: 1 Multiples: 1

Unit Price:

$-.--

Ext. Price:

$-.--

Est. Tariff:

Pricing (USD)

Qty.	Unit Price	Ext. Price
	$4.61	$4.61
	$3.05	$30.50
	$2.17	$217.00
	$1.74	$1,044.00
	$1.71	$2,052.00

.hidden-for-nojs { display: none; } .pull-right-nojs { justify-content: flex-end; }

Product Attribute	Attribute Value	Select Attribute
Manufacturer:	STMicroelectronics
Product Category:	IGBTs
RoHS:
Technology:	Si
Mounting Style:	Through Hole
Configuration:	Single
Collector- Emitter Voltage VCEO Max:	1.2 kV
Collector-Emitter Saturation Voltage:	2.5 V
Maximum Gate Emitter Voltage:	- 20 V, 20 V
Continuous Collector Current at 25 C:	30 A
Pd - Power Dissipation:	259 W
Minimum Operating Temperature:	- 55 C
Maximum Operating Temperature:	+ 175 C
Series:	STGWA15H120DF2
Packaging:	Tube
Brand:	STMicroelectronics
Gate-Emitter Leakage Current:	+/- 250 nA
Product Type:	IGBT Transistors
Factory Pack Quantity:	600
Subcategory:	IGBTs
Unit Weight:	6.100 g

Products found:

To show similar products, select at least one checkbox

Select at least one checkbox above to show similar products in this category.

Attributes selected: 0

Filter Document:

Datasheet

STGWA15H120DF2 Datasheet (PDF)

PCN

CNHTS:: 8541290000
CAHTS:: 8541290000
USHTS:: 8541290065
JPHTS:: 8541290100
KRHTS:: 8541299000
TARIC:: 8541290000
MXHTS:: 85412999
ECCN:: EAR99

Latest Technologies in Power MOSFET & IGBT

STMicroelectronics offers the newest technologies in Power MOSFETs and IGBTs. ST offers a wide portfolio of MOSFETs and IGBTs tailored to specific applications, targeting SMPS, lighting, motor control, and varied industrial applications. ST's portfolio includes high-voltage super-junction MOSFETs, trench-gate field-stop IGBTs for hard and soft switched topologies, and low-voltage trench-based MOSFETs for power conversion and BLDC motor drives. ST's 1200V SiC MOSFETs combine a high junction temperature rating of 200°C with a very low R_DS(on) area (with minimal variation versus temperature) and excellent switching performance for more efficient and compact SMPS designs. M series IGBTs offer an optimized VCE(SAT) and E(off) tradeoff along with a rugged short circuit rating for motor control. Explore ST's complete offering of MOSFETs and IGBTs for any power design.

1200V H Series Trench Gate Field-Stop IGBTs

STMicroelectronics 1200V H Series Trench Gate Field-Stop IGBTs represent an optimum compromise between conduction and switching losses to maximize the efficiency of any frequency converter. With ST's advanced Trench-Gate Field-Stop High-Speed technology, these IGBTs have a 5μs minimum short circuit withstand time at T_J=150°C, minimal collector current turn off tail, and very low saturation voltage (V_CE(sat)) down to 2.1V (typical) to minimize energy losses during switching and when turned on. Furthermore, a slightly positive V_CE(sat) temperature coefficient and very tight parameter distribution result in safer paralleling operation.
