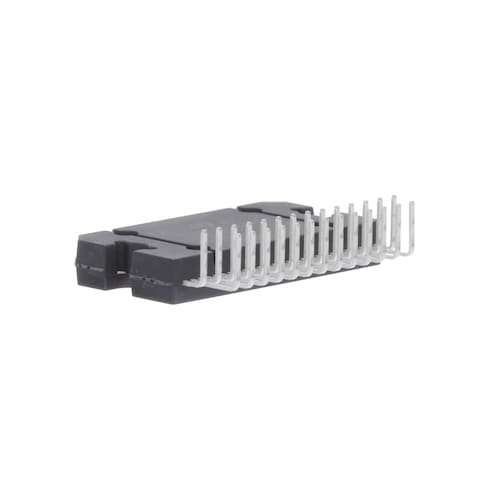

TDA7563BH

STMicroelectronics

Images are for reference only
See Product Specifications

Mouser No:

511-TDA7563BH

Mfr. No:

TDA7563BH

Mfr.:

STMicroelectronics

Description:

Audio Amplifiers 4 x 50W Multi Quad Power Amplifer D

Complete Your Design

Datasheet:

TDA7563BH Datasheet (PDF)

ECAD Model:

Download the free Library Loader to convert this file for your ECAD Tool. Learn more about the ECAD Model.

.hidden-for-nojs { display: none; } .pull-right-nojs { justify-content: flex-end; }

Product Attribute	Attribute Value	Select Attribute
Manufacturer:	STMicroelectronics
Product Category:	Audio Amplifiers
RoHS:
Output Type:	Differential
Class:	Class-AB
Output Power:	50 W
THD plus Noise:	0.2 %
Package/Case:	Flexiwatt-H-27
Audio - Load Impedance:	4 Ohms
Supply Voltage - Min:	8 V
Supply Voltage - Max:	18 V
Minimum Operating Temperature:	- 55 C
Maximum Operating Temperature:	+ 150 C
Mounting Style:	Through Hole
Series:	TDA7563B
Qualification:	AEC-Q100
Packaging:	Tube
Brand:	STMicroelectronics
Gain:	30 dB
Input Type:	Single
Number of Channels:	4 Channel
Output Current:	8 A
Product:	Audio Amplifiers
Product Type:	Audio Amplifiers
Factory Pack Quantity:	357
Subcategory:	Audio ICs
Supply Type:	Single
Type:	4-Channel Quad
Vos - Input Offset Voltage:	100 mV
Unit Weight:	7.115 g
