641991-5

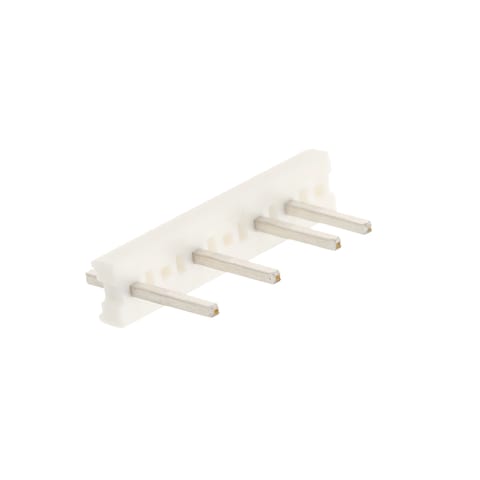

Name: TE Connectivity 641991-5
Brand: TE Connectivity / AMP
SKU: 571-641991-5
Price: 0.56 USD
Availability: InStock

Images are for reference only
See Product Specifications

Mouser No:

571-641991-5

Mfr. No:

641991-5

Mfr.:

TE Connectivity / AMP

Description:

Headers & Wire Housings 07P MTA156 HDT SQ W/O#1,4,6

Datasheet:

641991-5 Datasheet

ECAD Model:

Download the free Library Loader to convert this file for your ECAD Tool. Learn more about the ECAD Model.

More Information

Learn more about TE Connectivity / AMP 641991-5

In Stock: 1,000

Stock:: 1,000 Can Dispatch Immediately

An unexpected error occurred. Please try again later.
Factory Lead Time:: 12 Weeks Estimated factory production time for quantities greater than shown.

Enter Quantity:

Minimum: 1 Multiples: 1

Unit Price:

$-.--

Ext. Price:

$-.--

Est. Tariff:

Pricing (USD)

Qty.	Unit Price	Ext. Price
	$0.561	$0.56
	$0.473	$4.73
	$0.444	$11.10
	$0.40	$40.00
	$0.359	$89.75
	$0.273	$273.00
	$0.254	$762.00
	$0.247	$2,470.00

.hidden-for-nojs { display: none; } .pull-right-nojs { justify-content: flex-end; }

Product Attribute	Attribute Value	Select Attribute
Manufacturer:	TE Connectivity
Product Category:	Headers & Wire Housings
RoHS:
Product:	Headers
Type:	Plug Housing
Number of Positions:	2 Position
Pitch:	3.96 mm (0.156 in)
Number of Rows:	1 Row
Mounting Style:	Through Hole
Termination Style:	Solder Pin
Mounting Angle:	Straight
Contact Gender:	Pin (Male)
Contact Plating:	Tin
Series:	MTA-156
Tradename:	MTA
Application:	Wire-to-Board
Minimum Operating Temperature:	- 55 C
Maximum Operating Temperature:	+ 105 C
Brand:	TE Connectivity / AMP
Contact Material:	Copper Alloy
Product Type:	Headers & Wire Housings
Factory Pack Quantity:	1000
Subcategory:	Headers & Wire Housings
Unit Weight:	1 g

Products found:

To show similar products, select at least one checkbox

Select at least one checkbox above to show similar products in this category.

Attributes selected: 0

Filter Document:

Datasheet

641991-5 Datasheet

RoHS Certificate (PDF)

CNHTS:: 8538900000
CAHTS:: 8536690020
USHTS:: 8536694040
JPHTS:: 853669000
KRHTS:: 8536691000
TARIC:: 8536693000
MXHTS:: 8536699999
BRHTS:: 85366990
ECCN:: EAR99

MTA Connector System

TE Connectivity's (TE) Mass Termination Assembly (MTA) Connector System is a wire-to-board and wire-to-wire system based on insulation displacement contact (IDC) technology. MTA 100 connectors have contacts in a single row on .100 inch (2.54mm) centers, while MTA 156 connector contacts are in a single row on .156 inch (3.96mm) centers. These connectors provide wire feed-through capability for daisy-chain applications. IDCs are used to terminate a range of conductor sizes. Ribbon cable can also be terminated when the appropriate receptacle assembly and strain relief cover are used. Header assemblies for board-mount applications include right-angle and vertical-mount products, which are available in through-hole and surface-mount configurations. TE MTA connectors are ideal for household appliances, fitness equipment, garage door openers, gasoline pumps, coin changers, and vending machines.
