Positronic SMPL Mini-Rectangular Connectors
Positronic SMPL Mini-Rectangular Connectors offer size 22 machined contacts and a right-angle solder termination. These high-density connectors feature high reliability with 4 to 50 fixed contacts. The female closed-entry contacts utilize Positronic's unique PosiBand® system. The connectors are intermateable with SGMC and SGM series connectors and conform to MIL-DTL-28748 and UL E49351 standards. Positronic SMPL Mini-Rectangular Connectors are designed for rack and panel applications.
Features
- High-reliability connectors with fixed contacts
- High-density size 22 contacts
- Terminations are right-angle (90º) solder printed board mount
- Female closed-entry contacts utilize the PosiBand system
- Current ratings: signal level to 13A
- 4 to 50 contacts
- Multitude of polarization and connector coding (keying) options
- Intermateable with SGMC and SGM series
- Ideal for rack and panel applications
- Thermocouple contact options available
- Wide variety of options and accessories
- Conforms to MIL-DTL-28748 and UL E49351
Applications
- Military
- Aerospace and defense
- Rail and mass transit
- Oil, gas, and energy
- Medical
- Industrial
- Test and instrumentation
Specifications
- 5GΩ insulator resistance
- 2200Vrms proof voltage
- 250Vrms working voltage
- 4mΩ initial contact resistance (maximum)
- 5A contact current rating
- Lead-free solder process 1
- -55°C to +135°C temperature range

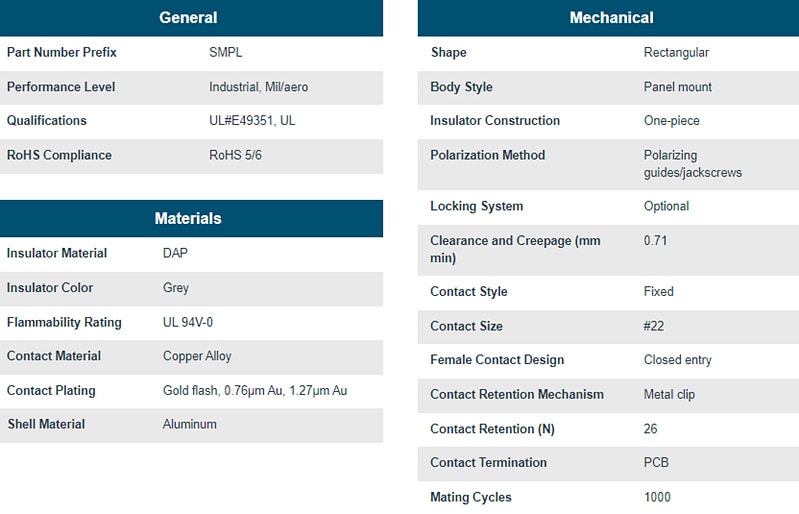

Connector Details
