Renesas Electronics Smart NFC Access Control System
Renesas Electronics Smart NFC Access Control System provides authenticated access and stores user information through an NFC card, camera, or manually entering user information. Capacitive buttons ensure no mechanical key failure is encountered over an extended period. Haptics are provided for active response to the user on touch. A proximity sensor is provided for auto wake-up functionality. The option of porting either a Linux or Android operating system gives the user flexibility in terms of UI experiences.
Features
- GSM LTE CAT M1, Wi-Fi®, BLUETOOTH® LE, Ethernet, NFC supported connectivity
- Lower infrastructure cost with Power Over Ethernet (POE)
- Local storage for database, history/log, and alarm events
- Local/remote authentication, user-defined rules, and policies
- Video, audio, and connectivity are all managed by high-performance, cost-effective MPU
- Wide operating system support (Android or Linux with Qt)

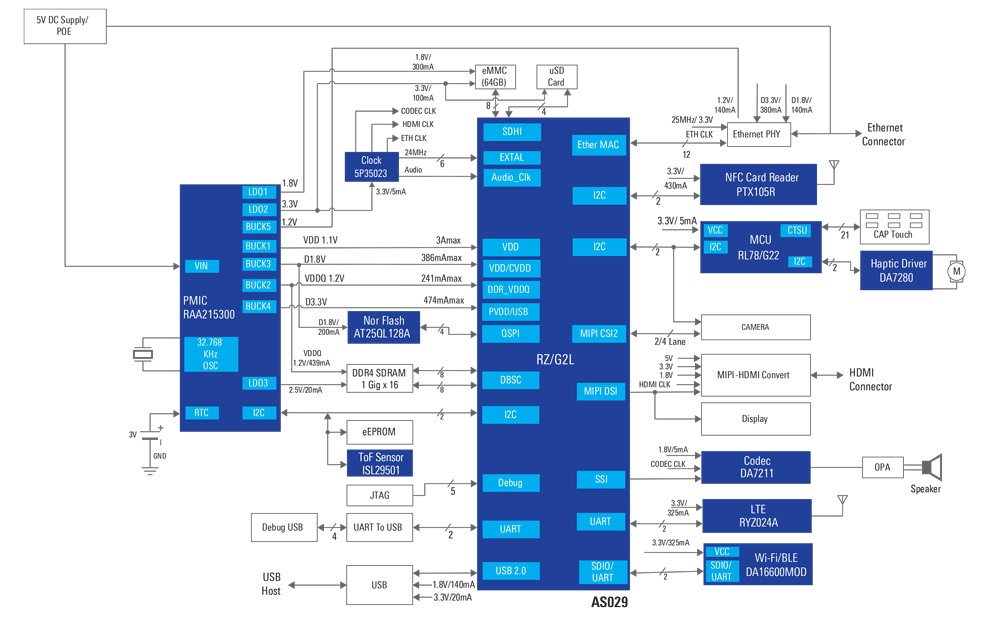

SYSTEM BLOCK DIAGRAM
FEATURED PRODUCTS
Renesas Electronics RZ/G2L & RZ/G2LC Microprocessors
Combines a Cortex®-A55 CPU, 16-bit DDR3L/DDR4 interface, & a 3D graphics engine into a BGA package.
Renesas / Dialog DA16600 Wi-Fi® + BLUETOOTH® Low Energy Modules
Designed to easily add low-power Wi-Fi® an BLUETOOTH® Low Energy functionality to applications.
Renesas Electronics RL78/G22 16-Bit Single-Chip Microcontrollers
16-Bit single-chip MCUs improve power efficiency with low power consumption.
Renesas Electronics VersaClock 3S Clock Generators
Designed for low power, consumer, and high-performance PCI Express applications.
Renesas / Dialog Dual / Quad SPI Memory
Industry-standard features and pinouts that work with pre-existing designs.
Renesas / Dialog DA7280 LRA/ERM Haptic Drivers
Offers automatic closed-loop linear resonant actuator (LRA) resonant frequency tracking.
Renesas Electronics RAA215300 High-Performance 9-Channel PMICs
High-performance, low-cost 9-channel PMIC designed for 32-bit and 64-bit MCU and MPU applications.
