STMicroelectronics LPS22 MEMS Nano Pressure Sensor
STMicroelectronics LPS22 MEMS Nano Pressure Sensor is an ultracompact piezoresistive absolute pressure sensor which functions as a digital output barometer. The sensor has a 260 to 1260hPa absolute pressure range with a current consumption down to 3μA. The device comprises a sensing element and an IC interface which communicates through I2C or SPI from the sensing element to the application.

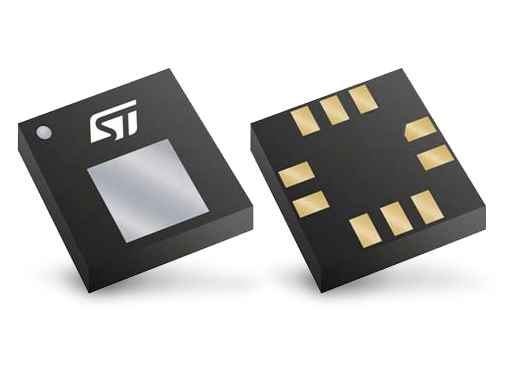

The sensing element detects absolute pressure and consists of a suspended membrane manufactured using a dedicated process. The LPS22 is available in a full-mold, holed LGA package (HLGA). The sensor is guaranteed to operate over a temperature range extending from -40°C to +85°C. The package is holed to allow external pressure to reach the sensing element.
Features
- 260 to 1260hPa absolute pressure range
- Current consumption down to 3μA
- High overpressure capability: 20x full-scale
- Embedded temperature compensation
- 24-bit pressure data output
- 16-bit temperature data output
- ODR from 1Hz to 75Hz
- SPI and I2C interfaces
- Embedded FIFO
- Interrupt functions:
- Data Ready, FIFO flags, pressure thresholds
- Supply voltage: 1.7 to 3.6V
- High shock survivability: 22,000g
- Small and thin package
- ECOPACK® lead-free compliant
Applications
- Altimeters and barometers for portable devices
- GPS applications
- Weather station equipment
- Sport watches
Development Tools
STMicroelectronics SensorTile Development Kits & IoT Modules
Ease the process of developing applications based on remote motion and environmental sensor data.
STMicroelectronics Predictive Maintenance & Monitoring Solution
Reference design kit designed for condition monitoring (CM) and predictive maintenance (PdM).
STMicroelectronics STEVAL-FCU001V2 Evaluation Board
Compact flight controller unit complete with sample firmware for quadcopter drone designs.
STMicroelectronics STEVAL-MKSBOX1V1 SensorTile.box Development Kit
Ready-to-use with wireless IoT and wearable sensor platforms.
STMicroelectronics STEVAL-SMARTAG1 NFC Sensor Node Evaluation Board
A smart, flexible NFC Tracker evaluation board.
STMicroelectronics B-L4S5I-IOT01A Discovery Kit for IoT Node
Allows users to develop applications with direct connection to cloud servers.
Additional Resources
Associated Sensors
STMicroelectronics Sensors for Environmental Applications
High-performance pressure, humidity and temp sensors with an innovative mechanical structure.
Block Diagram
