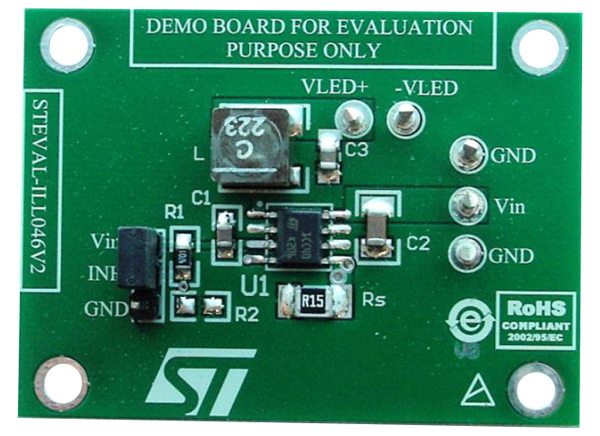

STMicroelectronics STEVAL-ILL046V2 Evaluation Board
STMicroelectronics STEVAL-ILL046V2 Evaluation Board is based on the ST1CC40, which is an 850kHz fixed switching frequency monolithic step-down DC-DC converter designed to operate as a precise constant current source with an adjustable current capability of up to 3A DC. In closed-loop operation, the ST1CC40 feedback pin voltage is 100 mV. Thus, the sensing resistor calculation is expressed as Rs = 100 mV/ILED. STMicroelectronics STEVAL-ILL046V2 is provided with 660mA by connecting a 150mW sensing resistor to the feedback pin. This evaluation board is fully protected against overheating, overcurrent, and output short-circuit.
Features
- 3V to 18V operating input voltage range
- 850kHz fixed switching frequency
- 100mV typical current sense voltage drop
- 6µA standby current in inhibit mode
- ±7% output current accuracy
- Synchronous rectification
- Embedded compensation network
- Internal current limiting
- Ceramic output capacitor compliant
- Thermal shutdown
- RoHS compliant
Related Converters
STMicroelectronics ST1CC40 Step-Down DC-DC Converters
Designed to operate as constant current source with an adjustable current capability up to 3A DC.
