Texas Instruments DEM-OPA-RGV-EVM Evaluation Module
Texas Instruments DEM-OPA-RGV-EVM Evaluation Module facilitates an extensive evaluation of the dual, wideband operational amplifiers in a VQFN (RGV) package. The DEM-OPA-RGV-EVM Evaluation Module is designed in accordance with high-speed performance specifications and power line communication (PLC) and transmission line drivers.
The TI DEM-OPA-RGV-EVM Evaluation Module allows quick and efficient lab testing of high-speed dual amplifiers using 50Ω SMA connectors using lab equipment. The device is easily configured for different gains and single or split-supply operations. The two channels on the DEM-OPA-RGV-EVM can be used as individual amplifiers or configured as a differential input to the differential-output driver. Additionally, the device can use a transformer with appropriate resistors at the output as a 50Ω single-ended output.
Features
- Configurable for single or split-supply operation
- Configurable gain and feedback networks for inverting and non-inverting configurations
- Supports single-ended or differential inputs and outputs
- Designed for easy connection to standard 50Ω input and output impedance lab equipment
- High-speed optimized layout to reduce parasitic effects

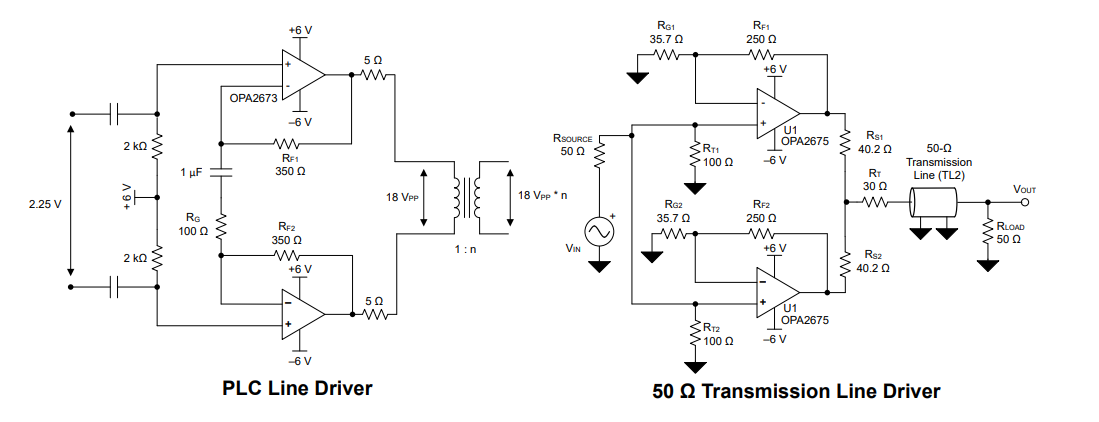

Typical Application

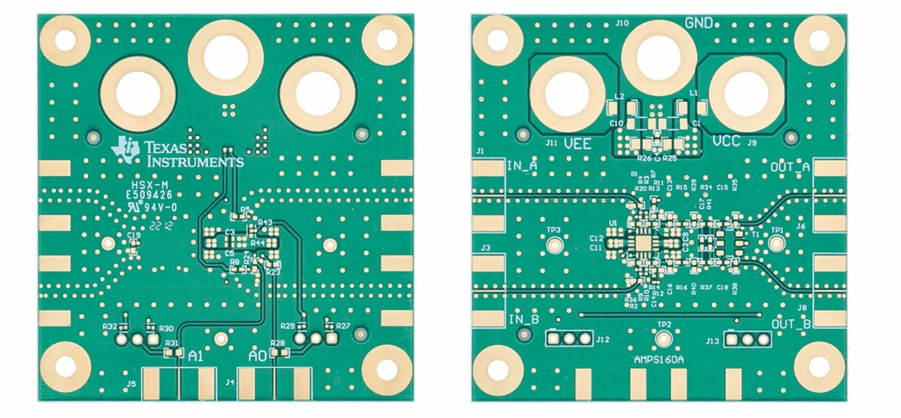

PCB Layout
Related Product
Texas Instruments OPA2675 Current Feedback Amplifier
The device can operate on power supplies ranging from 4.5V to 13V.
